Merge pull request #484 from treeform/guzba

rounding minifyBy2, updated masters
This commit is contained in:
Andre von Houck 2022-07-29 13:19:39 -07:00 committed by GitHub
commit 656c48f7ef
No known key found for this signature in database
GPG key ID: 4AEE18F83AFDEB23
138 changed files with 51 additions and 41 deletions

View file

@ -56,18 +56,13 @@ proc copy*(image: Image): Image {.raises: [].} =
template dataIndex*(image: Image, x, y: int): int =
image.width * y + x
proc mix*(a, b: uint8, t: float32): uint8 {.inline, raises: [].} =
## Linearly interpolate between a and b using t.
let t = round(t * 255).uint32
((a * (255 - t) + b * t) div 255).uint8
proc mix*(a, b: ColorRGBX, t: float32): ColorRGBX {.inline, raises: [].} =
## Linearly interpolate between a and b using t.
let x = round(t * 255).uint32
result.r = ((a.r.uint32 * (255 - x) + b.r.uint32 * x) div 255).uint8
result.g = ((a.g.uint32 * (255 - x) + b.g.uint32 * x) div 255).uint8
result.b = ((a.b.uint32 * (255 - x) + b.b.uint32 * x) div 255).uint8
result.a = ((a.a.uint32 * (255 - x) + b.a.uint32 * x) div 255).uint8
result.r = ((a.r.uint32 * (255 - x) + b.r.uint32 * x + 127) div 255).uint8
result.g = ((a.g.uint32 * (255 - x) + b.g.uint32 * x + 127) div 255).uint8
result.b = ((a.b.uint32 * (255 - x) + b.b.uint32 * x + 127) div 255).uint8
result.a = ((a.a.uint32 * (255 - x) + b.a.uint32 * x + 127) div 255).uint8
proc `*`*(color: ColorRGBX, opacity: float32): ColorRGBX {.raises: [].} =
if opacity == 0:
@ -75,10 +70,10 @@ proc `*`*(color: ColorRGBX, opacity: float32): ColorRGBX {.raises: [].} =
else:
let
x = round(opacity * 255).uint32
r = ((color.r * x) div 255).uint8
g = ((color.g * x) div 255).uint8
b = ((color.b * x) div 255).uint8
a = ((color.a * x) div 255).uint8
r = ((color.r * x + 127) div 255).uint8
g = ((color.g * x + 127) div 255).uint8
b = ((color.b * x + 127) div 255).uint8
a = ((color.a * x + 127) div 255).uint8
rgbx(r, g, b, a)
proc snapToPixels*(rect: Rect): Rect {.raises: [].} =

View file

@ -192,10 +192,10 @@ proc minifyBy2*(
c = src.data[bottomRowStart + x * 2 + 1]
d = src.data[bottomRowStart + x * 2]
mixed = rgbx(
((a.r.uint32 + b.r + c.r + d.r) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a) div 4).uint8
((a.r.uint32 + b.r + c.r + d.r + 2) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g + 2) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b + 2) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a + 2) div 4).uint8
)
result.data[result.dataIndex(x, y)] = mixed

View file

@ -296,6 +296,7 @@ proc minifyBy2Avx2*(image: Image, power = 1): Image {.simd.} =
)
let
oddMask = mm256_set1_epi16(0xff00)
vec2 = mm256_set1_epi16(2)
permuteControl = mm256_set_epi32(7, 7, 7, 7, 6, 4, 2, 0)
for y in 0 ..< resultEvenHeight:
let
@ -323,8 +324,10 @@ proc minifyBy2Avx2*(image: Image, power = 1): Image {.simd.} =
bottomAddedOdd = mm256_add_epi16(bottomOdd, bottomShiftedOdd)
addedEven = mm256_add_epi16(topAddedEven, bottomAddedEven)
addedOdd = mm256_add_epi16(topAddedOdd, bottomAddedOdd)
addedEvenDiv4 = mm256_srli_epi16(addedEven, 2)
addedOddDiv4 = mm256_srli_epi16(addedOdd, 2)
addedEvenRounding = mm256_add_epi16(addedEven, vec2)
addedOddRounding = mm256_add_epi16(addedOdd, vec2)
addedEvenDiv4 = mm256_srli_epi16(addedEvenRounding, 2)
addedOddDiv4 = mm256_srli_epi16(addedOddRounding, 2)
merged = mm256_or_si256(addedEvenDiv4, mm256_slli_epi16(addedOddDiv4, 8))
# Merged has the correct values for the next two pixels at
# index 0, 2, 4, 6 so permute into position and store
@ -342,10 +345,10 @@ proc minifyBy2Avx2*(image: Image, power = 1): Image {.simd.} =
c = src.data[bottomRowStart + x * 2 + 1]
d = src.data[bottomRowStart + x * 2]
mixed = rgbx(
((a.r.uint32 + b.r + c.r + d.r) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a) div 4).uint8
((a.r.uint32 + b.r + c.r + d.r + 2) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g + 2) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b + 2) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a + 2) div 4).uint8
)
result.data[result.dataIndex(x, y)] = mixed

View file

@ -350,19 +350,33 @@ proc minifyBy2Sse2*(image: Image, power = 1): Image {.simd.} =
if srcWidthIsOdd: resultEvenWidth + 1 else: resultEvenWidth,
if srcHeightIsOdd: resultEvenHeight + 1 else: resultEvenHeight
)
let oddMask = mm_set1_epi16(0xff00)
let
oddMask = mm_set1_epi16(0xff00)
loMask = mm_set_epi32(0, 0, uint32.high, uint32.high)
hiMask = mm_set_epi32(uint32.high, uint32.high, 0, 0)
vec2 = mm_set1_epi16(2)
for y in 0 ..< resultEvenHeight:
let
topRowStart = src.dataIndex(0, y * 2)
bottomRowStart = src.dataIndex(0, y * 2 + 1)
template loadEven(src: Image, idx: int): M128i =
var
a = mm_loadu_si128(src.data[idx].addr)
b = mm_loadu_si128(src.data[idx + 4].addr)
a = mm_shuffle_epi32(a, MM_SHUFFLE(3, 3, 2, 0))
b = mm_shuffle_epi32(b, MM_SHUFFLE(2, 0, 3, 3))
a = mm_and_si128(a, loMask)
b = mm_and_si128(b, hiMask)
mm_or_si128(a, b)
var x: int
while x <= resultEvenWidth - 4:
while x <= resultEvenWidth - 9:
let
top = mm_loadu_si128(src.data[topRowStart + x * 2].addr)
bottom = mm_loadu_si128(src.data[bottomRowStart + x * 2].addr)
topShifted = mm_srli_si128(top, 4)
bottomShifted = mm_srli_si128(bottom, 4)
top = loadEven(src, topRowStart + x * 2)
bottom = loadEven(src, bottomRowStart + x * 2)
topShifted = loadEven(src, topRowStart + x * 2 + 1)
bottomShifted = loadEven(src, bottomRowStart + x * 2 + 1)
topEven = mm_andnot_si128(oddMask, top)
topOdd = mm_srli_epi16(top, 8)
bottomEven = mm_andnot_si128(oddMask, bottom)
@ -377,15 +391,13 @@ proc minifyBy2Sse2*(image: Image, power = 1): Image {.simd.} =
bottomAddedOdd = mm_add_epi16(bottomOdd, bottomShiftedOdd)
addedEven = mm_add_epi16(topAddedEven, bottomAddedEven)
addedOdd = mm_add_epi16(topAddedOdd, bottomAddedOdd)
addedEvenDiv4 = mm_srli_epi16(addedEven, 2)
addedOddDiv4 = mm_srli_epi16(addedOdd, 2)
addedEvenRounding = mm_add_epi16(addedEven, vec2)
addedOddRounding = mm_add_epi16(addedOdd, vec2)
addedEvenDiv4 = mm_srli_epi16(addedEvenRounding, 2)
addedOddDiv4 = mm_srli_epi16(addedOddRounding, 2)
merged = mm_or_si128(addedEvenDiv4, mm_slli_epi16(addedOddDiv4, 8))
# Merged has the correct values for the next two pixels at
# index 0 and 2 so shift 0 and 2 into position and store
shuffled = mm_shuffle_epi32(merged, MM_SHUFFLE(3, 3, 2, 0))
lower = mm_cvtsi128_si64(shuffled)
copyMem(result.data[result.dataIndex(x, y)].addr, lower.unsafeAddr, 8)
x += 2
mm_storeu_si128(result.data[result.dataIndex(x, y)].addr, merged)
x += 4
for x in x ..< resultEvenWidth:
let
@ -394,10 +406,10 @@ proc minifyBy2Sse2*(image: Image, power = 1): Image {.simd.} =
c = src.data[bottomRowStart + x * 2 + 1]
d = src.data[bottomRowStart + x * 2]
mixed = rgbx(
((a.r.uint32 + b.r + c.r + d.r) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a) div 4).uint8
((a.r.uint32 + b.r + c.r + d.r + 2) div 4).uint8,
((a.g.uint32 + b.g + c.g + d.g + 2) div 4).uint8,
((a.b.uint32 + b.b + c.b + d.b + 2) div 4).uint8,
((a.a.uint32 + b.a + c.a + d.a + 2) div 4).uint8
)
result.data[result.dataIndex(x, y)] = mixed

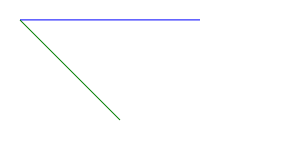

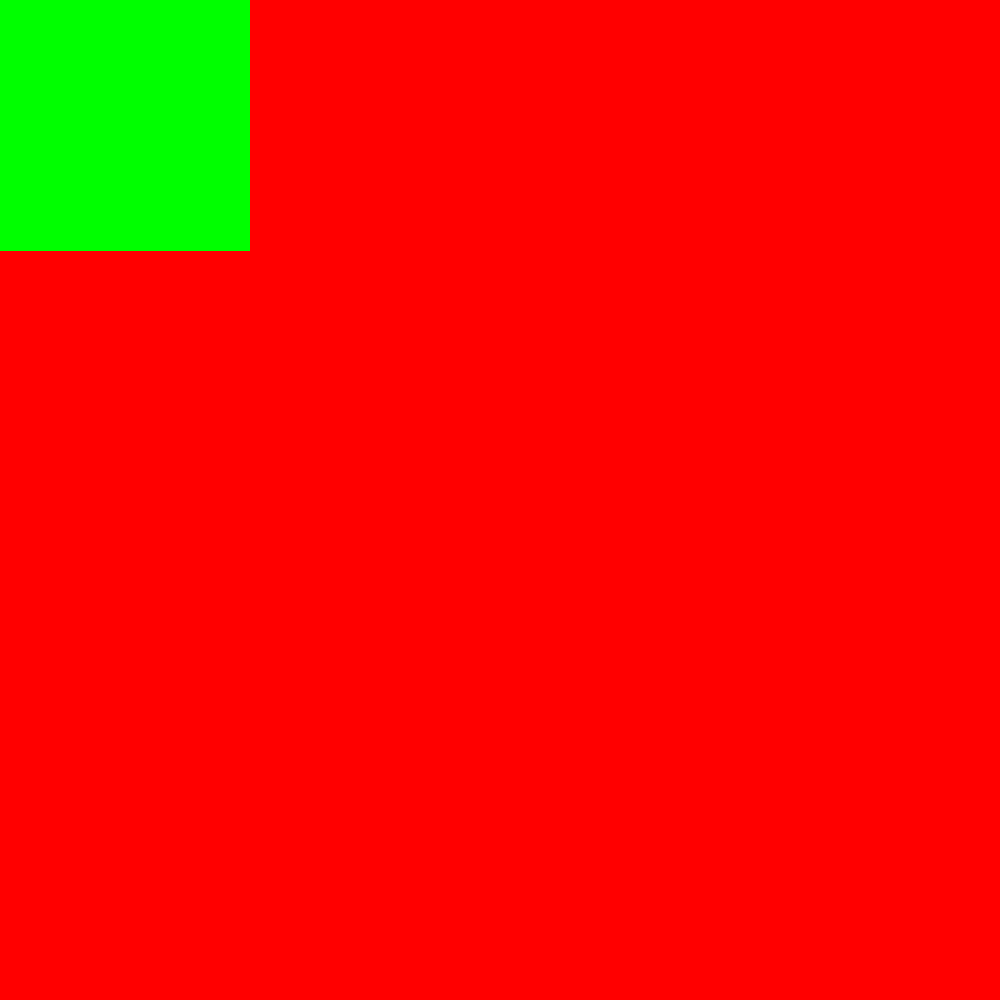

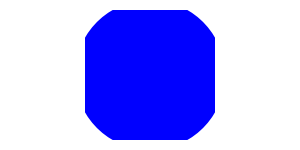

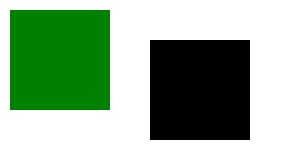

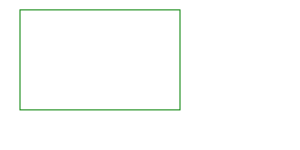

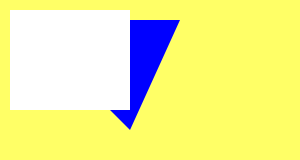

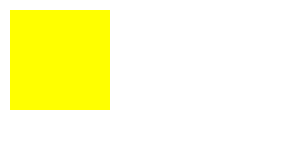

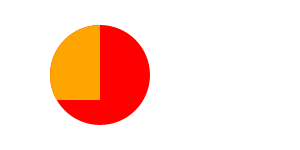

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.1 KiB

After

Width:  |  Height:  |  Size: 1.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.4 KiB

After

Width:  |  Height:  |  Size: 2.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.7 KiB

After

Width:  |  Height:  |  Size: 2.5 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 880 B

After

Width:  |  Height:  |  Size: 609 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.8 KiB

After

Width:  |  Height:  |  Size: 1.4 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.6 KiB

After

Width:  |  Height:  |  Size: 2.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.6 KiB

After

Width:  |  Height:  |  Size: 2.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 617 B

After

Width:  |  Height:  |  Size: 596 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.6 KiB

After

Width:  |  Height:  |  Size: 2.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 617 B

After

Width:  |  Height:  |  Size: 596 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.3 KiB

After

Width:  |  Height:  |  Size: 2.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1,005 B

After

Width:  |  Height:  |  Size: 629 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.3 KiB

After

Width:  |  Height:  |  Size: 1.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 4.5 KiB

After

Width:  |  Height:  |  Size: 3.4 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.6 KiB

After

Width:  |  Height:  |  Size: 2.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.2 KiB

After

Width:  |  Height:  |  Size: 3.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 36 KiB

After

Width:  |  Height:  |  Size: 36 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 36 KiB

After

Width:  |  Height:  |  Size: 36 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 5.9 KiB

After

Width:  |  Height:  |  Size: 3.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 806 B

After

Width:  |  Height:  |  Size: 777 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.2 KiB

After

Width:  |  Height:  |  Size: 3.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.7 KiB

After

Width:  |  Height:  |  Size: 3.4 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 5.4 KiB

After

Width:  |  Height:  |  Size: 4.2 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.5 KiB

After

Width:  |  Height:  |  Size: 3.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.1 KiB

After

Width:  |  Height:  |  Size: 628 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.1 KiB

After

Width:  |  Height:  |  Size: 1.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 327 B

After

Width:  |  Height:  |  Size: 317 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.3 KiB

After

Width:  |  Height:  |  Size: 2.2 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.7 KiB

After

Width:  |  Height:  |  Size: 2.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.2 KiB

After

Width:  |  Height:  |  Size: 1.2 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.9 KiB

After

Width:  |  Height:  |  Size: 1.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.2 KiB

After

Width:  |  Height:  |  Size: 1.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1 KiB

After

Width:  |  Height:  |  Size: 623 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 956 B

After

Width:  |  Height:  |  Size: 632 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.4 KiB

After

Width:  |  Height:  |  Size: 1.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.8 KiB

After

Width:  |  Height:  |  Size: 2.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1,008 B

After

Width:  |  Height:  |  Size: 723 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.3 KiB

After

Width:  |  Height:  |  Size: 1,014 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 6.9 KiB

After

Width:  |  Height:  |  Size: 5.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 988 B

After

Width:  |  Height:  |  Size: 697 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 968 B

After

Width:  |  Height:  |  Size: 751 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.9 KiB

After

Width:  |  Height:  |  Size: 668 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 68 KiB

After

Width:  |  Height:  |  Size: 53 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.1 KiB

After

Width:  |  Height:  |  Size: 628 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 111 B

After

Width:  |  Height:  |  Size: 104 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 60 KiB

After

Width:  |  Height:  |  Size: 48 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 89 KiB

After

Width:  |  Height:  |  Size: 67 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.5 KiB

After

Width:  |  Height:  |  Size: 1.2 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.3 KiB

After

Width:  |  Height:  |  Size: 1.1 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 355 B

After

Width:  |  Height:  |  Size: 337 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 913 B

After

Width:  |  Height:  |  Size: 787 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.2 KiB

After

Width:  |  Height:  |  Size: 742 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 130 B

After

Width:  |  Height:  |  Size: 111 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 441 B

After

Width:  |  Height:  |  Size: 352 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 358 B

After

Width:  |  Height:  |  Size: 327 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 352 B

After

Width:  |  Height:  |  Size: 326 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 344 B

After

Width:  |  Height:  |  Size: 326 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 5.7 KiB

After

Width:  |  Height:  |  Size: 4.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 4 KiB

After

Width:  |  Height:  |  Size: 3.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 412 B

After

Width:  |  Height:  |  Size: 346 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 475 B

After

Width:  |  Height:  |  Size: 372 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 211 B

After

Width:  |  Height:  |  Size: 168 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 178 B

After

Width:  |  Height:  |  Size: 138 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 177 KiB

After

Width:  |  Height:  |  Size: 184 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 7.6 KiB

After

Width:  |  Height:  |  Size: 6.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 8.3 KiB

After

Width:  |  Height:  |  Size: 6.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 9.6 KiB

After

Width:  |  Height:  |  Size: 6.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 8.3 KiB

After

Width:  |  Height:  |  Size: 6.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 8.3 KiB

After

Width:  |  Height:  |  Size: 6.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.6 KiB

After

Width:  |  Height:  |  Size: 2.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.2 KiB

After

Width:  |  Height:  |  Size: 2 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 388 B

After

Width:  |  Height:  |  Size: 353 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 1.5 KiB

After

Width:  |  Height:  |  Size: 1.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 106 B

After

Width:  |  Height:  |  Size: 96 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 105 B

After

Width:  |  Height:  |  Size: 95 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 393 B

After

Width:  |  Height:  |  Size: 375 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 388 B

After

Width:  |  Height:  |  Size: 375 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 514 B

After

Width:  |  Height:  |  Size: 387 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 129 B

After

Width:  |  Height:  |  Size: 108 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 305 B

After

Width:  |  Height:  |  Size: 252 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 471 B

After

Width:  |  Height:  |  Size: 408 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 305 B

After

Width:  |  Height:  |  Size: 250 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 8.3 KiB

After

Width:  |  Height:  |  Size: 7.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.6 KiB

After

Width:  |  Height:  |  Size: 3.6 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 4.2 KiB

After

Width:  |  Height:  |  Size: 3.9 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.6 KiB

After

Width:  |  Height:  |  Size: 3.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 355 B

After

Width:  |  Height:  |  Size: 300 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 261 B

After

Width:  |  Height:  |  Size: 190 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 520 B

After

Width:  |  Height:  |  Size: 426 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 837 B

After

Width:  |  Height:  |  Size: 430 B

Binary file not shown.

Before

Width:  |  Height:  |  Size: 27 KiB

After

Width:  |  Height:  |  Size: 27 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 40 KiB

After

Width:  |  Height:  |  Size: 40 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 4.3 KiB

After

Width:  |  Height:  |  Size: 3.7 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 3.9 KiB

After

Width:  |  Height:  |  Size: 3.3 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2.6 KiB

After

Width:  |  Height:  |  Size: 1.8 KiB

Binary file not shown.

Before

Width:  |  Height:  |  Size: 2 KiB

After

Width:  |  Height:  |  Size: 1.7 KiB

Some files were not shown because too many files have changed in this diff Show more
